Aluminum investment casting is a highly precise metal casting process that enables manufacturers to produce complex components with superior dimensional accuracy, fine surface finishes, and intricate geometries. This technique, commonly known as lost-wax casting, involves creating a wax model of the desired part, coating it with ceramic, and then pouring molten aluminum into the mold after the wax is removed. The process is widely utilized in aerospace, automotive, medical, defense, and industrial applications due to its ability to manufacture lightweight and high-strength parts with minimal post-processing.
One of the primary reasons aluminum investment casting is favored over other metal casting techniques is its ability to produce near-net-shape parts with reduced material waste. Unlike sand casting or die casting, this method minimizes machining requirements, leading to lower production costs and improved efficiency. Aluminum itself is an ideal material for investment casting because of its excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity. As a result, it is used to manufacture critical components where performance, durability, and precision are essential.
Another key advantage of aluminum investment casting is its design flexibility. The process allows for the creation of thin-walled structures, intricate internal cavities, and complex surface textures, which are difficult or impossible to achieve with other casting techniques. This makes aluminum investment casting a preferred choice for industries that require high-performance parts with precise tolerances and detailed features.
The Aluminum Investment Casting Process
The aluminum investment casting process consists of several well-defined steps, each contributing to the final quality of the cast component. The precision of this process ensures that even the most intricate designs can be accurately replicated with minimal defects.
Step 1: Creating the Wax Pattern
The first step in aluminum investment casting is the creation of a wax model that replicates the final part’s geometry. This wax pattern is typically produced through injection molding, where molten wax is injected into a metal mold to achieve the desired shape. In some cases, hand carving or 3D printing may be used for intricate or customized designs.
Once the wax pattern is formed, it undergoes a refinement process to remove any imperfections, ensuring it accurately represents the final part. Multiple wax patterns can be attached to a central wax runner, forming a tree-like assembly. This arrangement allows for the simultaneous casting of multiple parts in a single mold, improving production efficiency.
Step 2: Ceramic Shell Formation
After the wax patterns are assembled, they are dipped into a ceramic slurry, followed by a fine sand coating. This process is repeated multiple times to build a strong and heat-resistant ceramic shell around the wax patterns. Each layer is allowed to dry before the next one is applied, ensuring uniform coverage and durability.
The ceramic shell serves as the mold for the molten aluminum. It must be robust enough to withstand the high temperatures involved in the casting process while maintaining the intricate details of the wax pattern. The number of ceramic layers applied depends on the complexity and size of the final part, with more layers required for larger or more intricate designs.
Step 3: Wax Removal and Shell Curing
Once the ceramic shell is complete, the wax inside is removed through a process known as dewaxing. The ceramic assembly is placed in a high-temperature furnace or autoclave, where the wax melts and drains out, leaving behind a hollow mold. This step is crucial, as it ensures that the final aluminum casting will accurately replicate the original wax pattern.
After wax removal, the ceramic shell is further cured at high temperatures to increase its strength and eliminate any remaining moisture. This firing process also helps remove any residual wax, ensuring that the mold is completely clean before the metal is introduced.

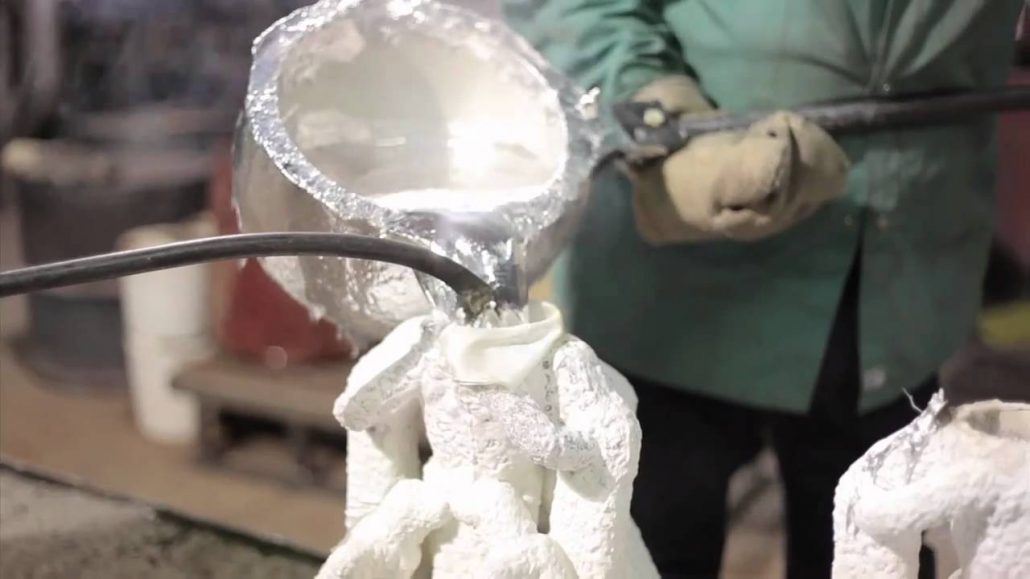

Step 4: Pouring the Molten Aluminum
Once the ceramic mold is fully prepared, molten aluminum is poured into it. The aluminum is heated to a precise temperature to ensure optimal flow and prevent defects such as porosity or shrinkage. Since aluminum has a relatively low melting point compared to other metals, it can be cast with minimal energy consumption while maintaining excellent mechanical properties.
Gravity pouring is the most common method used in aluminum investment casting, although vacuum casting and pressure-assisted casting may be employed for specific applications requiring even higher precision. The ceramic mold is designed to accommodate the molten metal’s expansion and contraction, preventing defects and ensuring a high-quality casting.
Step 5: Cooling and Shell Removal
After the molten aluminum is poured into the mold, it is allowed to cool and solidify. The cooling time depends on the size and complexity of the part, with larger components requiring more time to fully solidify. Proper cooling is essential to ensure uniform grain structure and mechanical properties in the final part.
Once the metal has cooled, the ceramic shell is broken away using mechanical vibration, high-pressure water jets, or chemical dissolution. The remaining ceramic residue is carefully removed to reveal the cast aluminum part. Any excess metal, such as gating and sprues, is trimmed off, and the part is inspected for quality.
Step 6: Finishing and Quality Inspection
The final step in the aluminum investment casting process involves finishing and quality inspection. Depending on the application, the cast part may undergo machining, surface treatments, or heat treatments to enhance its properties. Common finishing processes include grinding, polishing, shot blasting, and anodizing.
Quality control is a critical aspect of investment casting, ensuring that each component meets the required specifications. Inspection methods such as X-ray analysis, dye penetrant testing, and coordinate measuring machines (CMM) are used to detect internal and external defects. Once the part passes inspection, it is ready for assembly and use.
Aluminum Investment Casting Companies and Manufacturers
Here’s the updated section with your requested phrase added:
Several aluminum investment casting companies specialize in producing high-quality cast components for various industries. These companies employ advanced technologies, such as 3D printing for rapid prototyping, automated casting systems, and robotic finishing techniques to improve efficiency and consistency. Additionally, many die casting manufacturers in China are adopting similar advanced techniques to enhance their production capabilities and offer competitive solutions for global markets.
An aluminum investment casting manufacturer typically offers customized solutions based on the client’s requirements. Factors such as part complexity, volume, material specifications, and surface finish requirements influence the manufacturing process. Leading manufacturers ensure compliance with industry standards, including ISO certifications, aerospace regulations, and automotive quality requirements.
Aluminum investment casting companies provide a range of services, from initial design consultation to full-scale production. Many companies also offer additional post-processing services such as CNC machining, heat treatment, and coating applications. Selecting the right manufacturer is crucial for ensuring cost-effectiveness, quality, and timely delivery of components.
Investment Casting Aluminum Parts and Their Applications
Investment casting aluminum parts are used in numerous industries due to their lightweight nature, high strength, and resistance to corrosion. Some common applications include:
- Aerospace Components – Engine housings, turbine blades, brackets, and structural supports require precision and lightweight properties.
- Automotive Parts – Aluminum investment casting is used for engine components, transmission parts, and suspension systems.
- Medical Equipment – Surgical tools and prosthetic devices benefit from aluminum’s biocompatibility and durability.
- Industrial Machinery – Pumps, valves, and custom machine components are often produced using investment casting.
Investment Casting Aluminum Alloys and Their Properties
Several investment casting aluminum alloys are available, each offering distinct mechanical properties suited for different applications. Common alloys used in investment casting include:
- A356 Aluminum – Known for its excellent strength and corrosion resistance, widely used in aerospace and automotive industries.
- 319 Aluminum – Offers good wear resistance and is commonly used for engine components.
- 535 Aluminum – Provides high impact resistance and is ideal for marine applications.
Selecting the right aluminum alloy depends on factors such as mechanical strength, weight requirements, corrosion resistance, and cost considerations.
Advantages of Aluminum Investment Casting
Aluminum investment casting offers numerous advantages compared to other metal casting methods, making it a preferred choice for manufacturers across different industries. Some of the key benefits include:
1. Superior Precision and Accuracy
One of the biggest advantages of aluminum investment casting is its ability to produce parts with extremely tight tolerances and intricate details. The lost-wax process ensures that every cast component closely matches the original design, reducing the need for extensive machining and secondary processing. This level of precision is particularly beneficial for industries such as aerospace and medical, where accuracy is critical.
2. Lightweight and High Strength
Aluminum is known for its excellent strength-to-weight ratio, making it an ideal material for applications that require both durability and reduced weight. Investment casting aluminum parts are commonly used in automotive and aerospace applications to improve fuel efficiency without compromising performance. Additionally, aluminum alloys used in investment casting provide excellent mechanical properties, making them suitable for load-bearing components.
3. Excellent Surface Finish
Unlike sand casting, which often results in rough surfaces that require additional finishing, aluminum investment casting produces smooth surfaces with minimal imperfections. The ceramic mold used in the process ensures a refined finish, which can further be enhanced through polishing, anodizing, or powder coating. A high-quality surface finish reduces the need for post-processing and improves the aesthetic appeal of the final product.
4. Complex Geometries and Thin Walls
Investment casting allows manufacturers to produce highly complex parts with thin-walled structures that would be difficult or impossible to achieve using traditional casting techniques. The ability to create intricate internal cavities and fine details without the limitations of machining makes aluminum investment casting an excellent choice for components with unique shapes and functional requirements.
5. Cost-Effective for Medium to High Production Volumes
While aluminum investment casting may have higher upfront tooling costs compared to other casting methods, it becomes highly cost-effective for medium to high production volumes. The process minimizes material waste, reduces the need for machining, and allows multiple parts to be cast simultaneously. This efficiency leads to lower overall production costs, making it an economical choice for many industries.
6. Versatile Applications
Investment casting aluminum parts are used across various industries, including:
- Aerospace: Aircraft structural components, engine housings, and landing gear parts.
- Automotive: Lightweight engine parts, transmission components, and suspension parts.
- Medical: Surgical instruments, prosthetics, and imaging equipment housings.
- Defense: Military-grade components, armor plating, and firearm parts.
- Electronics: Heat sinks, enclosures, and connectors for electronic devices.
Challenges and Considerations in Aluminum Investment Casting
While aluminum investment casting provides numerous advantages, there are also some challenges that manufacturers need to consider:
1. Higher Initial Tooling Costs
The investment casting process requires the creation of wax patterns and ceramic molds, which can result in higher initial costs compared to sand casting or die casting. However, these costs are offset by reduced machining and material waste, making investment casting a cost-effective choice for long-term production runs.
2. Longer Production Lead Times
Due to the multiple steps involved in investment casting, including wax pattern creation, ceramic shell building, and mold firing, the overall lead time can be longer compared to other casting methods. However, advancements in 3D printing and automation are helping to reduce production times and improve efficiency.
3. Limited to Medium-Sized Parts
While investment casting is excellent for small to medium-sized components, it may not be the best choice for very large parts. The process is generally used for parts weighing between a few grams to around 100 pounds. For larger components, sand casting or permanent mold casting may be more suitable.
4. Porosity and Shrinkage Concerns
Like any casting process, aluminum investment casting is susceptible to porosity and shrinkage defects. Proper process control, including precise temperature management and controlled cooling rates, is essential to minimizing these issues. Manufacturers use techniques such as vacuum casting and degassing to ensure high-quality, defect-free parts.
Future Trends in Aluminum Investment Casting
The aluminum investment casting industry continues to evolve with advancements in technology and material science. Some of the key trends shaping the future of this manufacturing process include:
1. Integration of 3D Printing for Rapid Prototyping
The use of 3D printing technology is revolutionizing the investment casting process. Instead of traditional wax patterns, 3D-printed patterns can be used to quickly create complex molds without the need for expensive tooling. This significantly reduces lead times and enables manufacturers to produce prototype parts faster than ever before.
2. Automation and Robotics in Casting Facilities
Many aluminum investment casting companies are adopting automation and robotic systems to improve process efficiency and consistency. Automated pouring, robotic finishing, and AI-driven quality control are helping to reduce human error, lower costs, and increase production throughput.
3. Advancements in Aluminum Alloys
Researchers are continually developing new investment casting aluminum alloys with improved mechanical properties, corrosion resistance, and thermal stability. These advanced alloys are enabling manufacturers to produce even stronger and more lightweight parts for critical applications.
4. Sustainable and Eco-Friendly Practices
Environmental sustainability is becoming a priority for aluminum investment casting manufacturers. Efforts to reduce energy consumption, recycle casting materials, and minimize waste are driving innovations in green manufacturing. Many companies are also exploring biodegradable wax patterns and eco-friendly ceramic shell materials.
Choosing the Right Aluminum Investment Casting Manufacturer
Selecting a reliable aluminum investment casting manufacturer is crucial for ensuring the quality, performance, and cost-effectiveness of your parts. Here are some factors to consider when choosing a supplier:
1. Experience and Industry Expertise
Look for manufacturers with a proven track record in aluminum investment casting, particularly in your industry. Companies with years of experience are more likely to deliver high-quality parts that meet stringent requirements.
2. Certifications and Compliance
Ensure that the manufacturer adheres to industry standards such as ISO 9001, AS9100 (for aerospace), or IATF 16949 (for automotive). Compliance with these standards ensures that the production process meets strict quality and safety regulations.
3. Material Selection and Customization Options
A good investment casting supplier should offer a variety of investment casting aluminum alloys to match your specific application needs. They should also provide customization options, including different surface finishes, machining services, and post-processing treatments.
4. Quality Control and Inspection Capabilities
Choose a manufacturer that employs advanced quality control techniques such as X-ray inspection, non-destructive testing (NDT), and coordinate measuring machines (CMM). High-quality inspection ensures that the final product meets precise specifications and is free from defects.
5. Production Capacity and Lead Times
Consider the manufacturer’s production capacity and ability to meet your deadlines. Some manufacturers specialize in high-volume production, while others focus on low-volume, high-precision parts. Ensure that the supplier can accommodate your order size and delivery timeline.
Conclusion
Aluminum investment casting is a highly versatile and precise manufacturing process that offers numerous advantages, including excellent accuracy, lightweight strength, and superior surface finishes. With applications in aerospace, automotive, medical, defense, and industrial sectors, it remains a preferred choice for producing high-quality, intricate metal components.
By selecting the right aluminum investment casting companies and working with an experienced aluminum investment casting manufacturer, businesses can benefit from cost-effective production, advanced material options, and cutting-edge manufacturing techniques. As the industry continues to evolve with advancements in 3D printing, automation, and eco-friendly practices, aluminum investment casting is poised to remain a crucial manufacturing solution for years to come.
