Thermoplastic injection molding is a widely used manufacturing process that enables the mass production of complex plastic parts with high precision and consistency. This method involves melting thermoplastic polymers and injecting them into a mold cavity under high pressure. Once the molten material cools and solidifies, it takes the shape of the mold, resulting in durable and accurately shaped components. Thermoplastics are versatile materials that can be reheated, reshaped, and recycled without significant degradation of their properties, making them ideal for a wide range of applications across industries such as automotive, medical, consumer electronics, packaging, and aerospace. The process of thermoplastic injection molding begins with feeding plastic pellets into a heated barrel. The heat melts the pellets, transforming them into a viscous fluid. A screw mechanism then pushes the molten plastic through a nozzle into the mold cavity. After the material cools and solidifies, the mold opens, and the finished part is ejected. This cycle can be repeated rapidly, allowing for high-volume production with minimal variation between parts. The ability to produce intricate designs with tight tolerances and excellent surface finishes makes thermoplastic injection molding a preferred choice for both prototyping and large-scale manufacturing.
One of the key advantages of thermoplastic injection molding is its material versatility. Thermoplastics such as ABS, polycarbonate, nylon, polypropylene, and polyethylene offer diverse mechanical, thermal, and chemical properties, allowing manufacturers to select the most suitable material for their specific application. Additionally, thermoplastics can be modified with additives, fillers, and reinforcements to enhance strength, durability, UV resistance, and other characteristics. This flexibility, combined with the efficiency of the injection molding process, has made thermoplastic injection molding an essential technology in modern manufacturing.
Injection Molded Thermoplastic: Applications and Benefits
Injection molded thermoplastic components are found in countless products we use every day, from automotive parts and medical devices to consumer electronics and household goods. The process of creating injection molded thermoplastic parts offers numerous benefits, including cost-effectiveness, design flexibility, and exceptional product quality. This manufacturing method is ideal for producing both small, intricate parts and large, complex components with high repeatability. One of the primary advantages of injection molded thermoplastic parts is their durability. Thermoplastics are known for their excellent impact resistance, chemical stability, and thermal performance, making them suitable for demanding applications. For example, in the automotive industry, injection molded thermoplastic components are used in dashboards, bumpers, interior trim, and under-the-hood parts due to their lightweight nature and ability to withstand harsh conditions. In the medical field, thermoplastics are used to manufacture surgical instruments, diagnostic devices, and disposable products because of their biocompatibility and ease of sterilization.
The design flexibility offered by injection molded thermoplastic is another key benefit. The process allows for the creation of complex geometries, thin walls, and detailed features that would be difficult or impossible to achieve with other manufacturing methods. This enables engineers and designers to develop innovative products with enhanced functionality and aesthetics. Additionally, the ability to integrate multiple components into a single molded part reduces assembly requirements, lowering production costs and improving overall product reliability. Sustainability is also a significant advantage of injection molded thermoplastic. Since thermoplastics can be melted and reprocessed multiple times without significant degradation, scrap material can be recycled, reducing waste and minimizing environmental impact. This aligns with the growing demand for sustainable manufacturing practices and eco-friendly products.
Injection Molding Thermoplastic: Process Optimization and Material Selection
The success of injection molding thermoplastic parts depends on optimizing the process parameters and selecting the right materials for the application. Key factors such as temperature, pressure, injection speed, and cooling time must be carefully controlled to ensure consistent quality and minimize defects. Advanced injection molding machines are equipped with precise control systems that monitor and adjust these parameters in real-time, enabling manufacturers to achieve optimal results. Material selection is a critical aspect of injection molding thermoplastic. Different thermoplastics offer varying properties, including tensile strength, flexibility, heat resistance, and chemical compatibility. For example, ABS (Acrylonitrile Butadiene Styrene) is a popular choice for automotive and consumer products due to its toughness and ease of processing. Polycarbonate is valued for its high impact resistance and optical clarity, making it suitable for lenses, protective gear, and electronic housings. Nylon is known for its excellent mechanical properties and resistance to wear, making it ideal for gears, bearings, and structural components.
In addition to choosing the right base material, manufacturers can enhance the performance of injection molded thermoplastic parts by incorporating additives, fillers, and reinforcements. Glass fibers, for example, can be added to increase strength and stiffness, while UV stabilizers improve resistance to sunlight exposure. Flame retardants, colorants, and anti-static agents are also commonly used to meet specific performance requirements. Process optimization techniques, such as mold flow analysis and computer-aided engineering (CAE) simulations, play a crucial role in injection molding thermoplastic. These tools help predict how the material will flow within the mold, identify potential issues like air traps, weld lines, and sink marks, and optimize gate locations, cooling channels, and part geometry. By addressing these factors during the design phase, manufacturers can reduce cycle times, minimize defects, and improve overall product quality.
Thermoset vs. Thermoplastic Injection Molding: Key Differences and Applications
Understanding the differences between thermoset and thermoplastic injection molding is essential for selecting the right process for a given application. While both methods involve injecting material into a mold to create a desired shape, the materials used and the resulting properties of the molded parts differ significantly.
Thermoplastic injection molding uses materials that can be melted, reshaped, and recycled multiple times without significant degradation. Thermoplastics soften when heated and harden when cooled, making them highly versatile and easy to process. This property allows for the production of complex parts with tight tolerances and excellent surface finishes. Thermoplastics are widely used in automotive, medical, electronics, and consumer goods industries due to their durability, chemical resistance, and lightweight nature. In contrast, thermoset injection molding involves materials that undergo a chemical reaction during the molding process, causing them to cure and become permanently hard. Once cured, thermoset materials cannot be melted or reshaped. This irreversible curing process gives thermosets superior thermal stability, chemical resistance, and structural integrity compared to thermoplastics. Thermoset materials, such as epoxy, phenolic, and melamine resins, are commonly used in applications that require high heat resistance, electrical insulation, and mechanical strength, such as circuit breakers, automotive under-the-hood components, and aerospace parts.
The key differences between thermoset and thermoplastic injection molding can be summarized as follows:
- Recyclability: Thermoplastics can be recycled and reprocessed, while thermosets cannot be remelted once cured.
- Processing: Thermoplastics soften when heated and harden when cooled, allowing for easy reshaping. Thermosets undergo a curing process that creates a permanent chemical bond.
- Heat Resistance: Thermosets offer superior heat resistance and maintain their structural integrity at high temperatures, whereas thermoplastics may soften under extreme heat.
- Mechanical Properties: Thermosets are generally more rigid and brittle, while thermoplastics offer greater flexibility and impact resistance.
Choosing between thermoset and thermoplastic injection molding depends on the specific requirements of the application. For example, if recyclability, flexibility, and rapid production are priorities, thermoplastic injection molding is the preferred choice. However, for applications that demand high-temperature performance, chemical resistance, and long-term durability, thermoset injection molding may be more suitable.
The Future of Thermoplastic Injection Molding: Innovations and Trends
As industries continue to evolve, thermoplastic injection molding is poised to play an even more significant role in modern manufacturing. Advances in materials science, process automation, and digital technologies are driving innovations that improve efficiency, reduce costs, and expand the capabilities of injection molding. One of the key trends shaping the future of thermoplastic injection molding is the development of advanced materials with enhanced properties. High-performance thermoplastics, such as PEEK (Polyether Ether Ketone), PPS (Polyphenylene Sulfide), and LCP (Liquid Crystal Polymer), offer exceptional strength, heat resistance, and chemical stability, making them ideal for demanding applications in aerospace, medical, and electronics industries. Additionally, the integration of bio-based and biodegradable thermoplastics supports sustainability efforts, reducing environmental impact and promoting circular economy practices.
Automation and Industry 4.0 technologies are also transforming thermoplastic injection molding. Smart manufacturing systems equipped with sensors, data analytics, and artificial intelligence (AI) enable real-time monitoring and optimization of production processes. This not only improves product quality and consistency but also enhances operational efficiency and reduces downtime. Collaborative robots (cobots) are increasingly being used to automate repetitive tasks, such as part handling, assembly, and quality inspection, further streamlining production workflows. Additive manufacturing, or 3D printing, is complementing traditional injection molding processes by enabling rapid prototyping, mold inserts, and low-volume production runs. Hybrid manufacturing approaches that combine injection molding with additive technologies offer new possibilities for complex geometries, customized parts, and on-demand manufacturing.
Sustainability is another critical focus for the future of thermoplastic injection molding. Manufacturers are adopting eco-friendly practices, such as using recycled materials, optimizing energy consumption, and minimizing waste through process improvements and closed-loop recycling systems. These initiatives not only reduce environmental impact but also align with regulatory requirements and consumer demand for sustainable products.
Thermoplastic Injection Molding: A Comprehensive Insight into Modern Manufacturing
Thermoplastic injection molding is a cornerstone of modern manufacturing, playing a critical role in the production of countless plastic components found in everyday life. From automotive parts and medical devices to consumer electronics and packaging materials, thermoplastic injection molding is a versatile, efficient, and cost-effective process that supports mass production with remarkable precision and consistency. This process involves melting thermoplastic polymers and injecting them into a precisely designed mold under high pressure. Once cooled, the material solidifies, taking the shape of the mold cavity to form the final product. Thermoplastics are polymers that soften when heated and harden when cooled, a reversible process that allows them to be reshaped and recycled multiple times without significant degradation of their properties. This characteristic makes thermoplastic injection molding not only highly efficient but also environmentally friendly, as scrap materials can be reprocessed and reused. Common thermoplastics used in injection molding include ABS (Acrylonitrile Butadiene Styrene), polypropylene, polyethylene, polycarbonate, and nylon, each offering unique properties suited to specific applications.

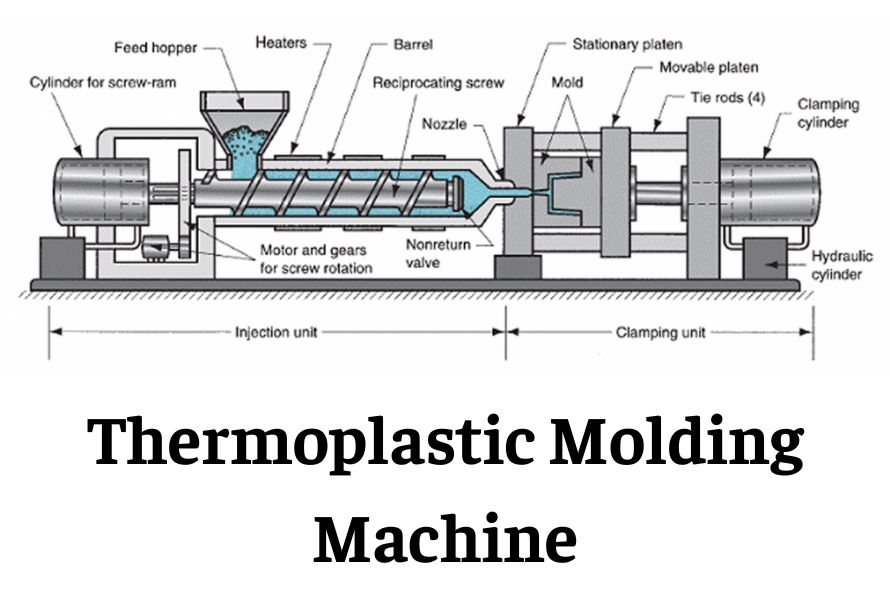

The process begins with feeding thermoplastic pellets into a heated barrel, where they are melted to a viscous state. A screw mechanism pushes the molten material forward, injecting it into the mold cavity through a nozzle. After cooling and solidification, the mold opens, and the part is ejected. This cycle can be repeated rapidly, making it ideal for high-volume production. The precision of this process allows for the creation of complex geometries, fine details, and tight tolerances, which are often required in industries such as aerospace, automotive, and medical devices.
Advantages of Thermoplastic Injection Molding in Industrial Applications
Thermoplastic injection molding offers numerous advantages that make it a preferred manufacturing method across various industries. One of the most significant benefits is its ability to produce large volumes of parts with consistent quality. The automated nature of the process ensures that each cycle produces identical components, reducing the likelihood of defects and minimizing waste. This consistency is crucial in industries where product reliability and performance are non-negotiable, such as in the medical, automotive, and aerospace sectors. Another advantage of thermoplastic injection molding is its cost-effectiveness, particularly for high-volume production. Although the initial investment in mold design and tooling can be substantial, the per-unit cost decreases significantly with increased production volumes. The efficiency of the process reduces labor costs, as automated machinery handles much of the work, from material feeding and injection to cooling and ejection. Additionally, thermoplastics are generally less expensive than metals or other engineering materials, further contributing to cost savings.
Design flexibility is another key benefit of thermoplastic injection molding. The process can accommodate complex shapes, thin walls, and intricate details that would be challenging to achieve with other manufacturing methods. This flexibility allows engineers to optimize product designs for both functionality and aesthetics, integrating features such as threads, logos, and undercuts directly into the molded part. Moreover, thermoplastics can be easily colored using masterbatch pigments or pre-colored resins, eliminating the need for secondary painting or coating processes. The material properties of thermoplastics also contribute to their widespread use. They offer excellent mechanical strength, chemical resistance, and thermal stability, making them suitable for demanding environments. Thermoplastics can also be modified with fillers, reinforcements, and additives to enhance specific properties, such as impact resistance, UV stability, or flame retardancy. This versatility allows manufacturers to tailor materials to meet the exact requirements of their applications.
Injection Molded Thermoplastic: Applications Across Diverse Industries
Injection molded thermoplastic parts are integral to a wide range of industries due to their durability, precision, and cost-effectiveness. In the automotive industry, for example, thermoplastic injection molding is used to produce components such as dashboards, bumpers, interior panels, and under-the-hood parts. The lightweight nature of thermoplastics contributes to improved fuel efficiency, while their resistance to chemicals and high temperatures ensures long-term performance in harsh environments. In the medical field, injection molded thermoplastic components are used in surgical instruments, diagnostic devices, drug delivery systems, and disposable products. The ability to produce sterile, biocompatible parts with high precision is essential in this industry, where product safety and regulatory compliance are paramount. Medical-grade thermoplastics such as polycarbonate, PEEK, and polypropylene are commonly used due to their strength, clarity, and resistance to sterilization processes.
The electronics industry also relies heavily on injection molded thermoplastic parts for components such as housings, connectors, switches, and insulators. Thermoplastics provide excellent electrical insulation properties, along with resistance to heat and flame, making them ideal for protecting sensitive electronic circuits. Additionally, the ability to produce complex shapes with fine details supports the miniaturization of electronic devices, which is a growing trend in consumer electronics. In the packaging industry, thermoplastic injection molding is used to create containers, caps, closures, and dispensers. The process allows for the production of lightweight, durable packaging solutions with tamper-evident features and airtight seals, ensuring product safety and shelf life. Thermoplastics such as polyethylene and polypropylene are preferred for their flexibility, clarity, and recyclability, making them suitable for food-grade and pharmaceutical packaging.
Optimizing the Injection Molding Thermoplastic Process
To achieve optimal results in injection molding thermoplastic parts, manufacturers must carefully control various process parameters, including temperature, pressure, injection speed, and cooling time. Each of these factors plays a critical role in determining the quality, consistency, and performance of the final product. Temperature control is essential to ensure that the thermoplastic material melts uniformly and flows smoothly into the mold cavity. If the temperature is too low, the material may not fill the mold completely, resulting in short shots or voids. Conversely, if the temperature is too high, it can cause material degradation, leading to discoloration, warping, or brittleness. Precise temperature regulation throughout the barrel, nozzle, and mold is necessary to maintain material integrity and part quality.
Injection pressure and speed also influence the molding process. High injection pressure helps fill complex molds quickly and reduces the risk of air entrapment, while controlled injection speed ensures uniform material distribution and minimizes flow marks or weld lines. Balancing these parameters is key to producing defect-free parts with consistent dimensions and surface finishes. Cooling time is another critical factor in injection molding thermoplastic parts. The cooling phase accounts for a significant portion of the cycle time, and optimizing this step can improve productivity without compromising part quality. Efficient mold cooling systems, such as conformal cooling channels or advanced heat transfer materials, help reduce cycle times and ensure uniform cooling, which minimizes warping and shrinkage.
Mold design also plays a crucial role in the success of injection molding thermoplastic products. A well-designed mold ensures proper material flow, effective cooling, and easy part ejection. Features such as gate locations, venting, draft angles, and parting lines must be carefully considered to prevent common defects like sink marks, flash, and warpage. Computer-aided engineering (CAE) tools and mold flow analysis software are valuable resources for optimizing mold designs and predicting potential issues before production begins.
Thermoset vs. Thermoplastic Injection Molding: Key Differences and Applications
When comparing thermoset vs. thermoplastic injection molding, it’s important to understand the fundamental differences between these two materials and their respective manufacturing processes. While both involve injecting material into a mold to create a desired shape, the chemical and physical properties of thermosets and thermoplastics result in distinct performance characteristics and applications. Thermoplastic injection molding uses materials that can be melted, reshaped, and recycled multiple times. Thermoplastics soften when heated and harden when cooled, allowing for reversible processing. This property makes thermoplastics ideal for applications that require flexibility, recyclability, and ease of manufacturing. Common thermoplastics used in injection molding include ABS, polycarbonate, polypropylene, and nylon, each offering a unique combination of strength, toughness, and chemical resistance.
The Future of Thermoplastic Injection Molding: Trends and Innovations
The future of thermoplastic injection molding is being shaped by advancements in materials science, process automation, and sustainable manufacturing practices. As industries demand higher performance, greater efficiency, and reduced environmental impact, thermoplastic injection molding is evolving to meet these challenges. One of the most significant trends in thermoplastic injection molding is the development of high-performance materials. Advanced engineering thermoplastics, such as PEEK (Polyether Ether Ketone), PPS (Polyphenylene Sulfide), and LCP (Liquid Crystal Polymer), offer exceptional mechanical, thermal, and chemical properties. These materials are increasingly used in aerospace, medical, and electronics applications, where performance requirements are stringent, and traditional materials may fall short.
Sustainability is another key focus area. As environmental concerns grow, manufacturers are adopting eco-friendly practices such as using recycled materials, reducing energy consumption, and minimizing waste. Biodegradable and bio-based thermoplastics are gaining popularity as sustainable alternatives to traditional petroleum-based plastics. Additionally, closed-loop recycling systems and energy-efficient injection molding machines contribute to greener production processes. Automation and digitalization are transforming thermoplastic injection molding operations. Industry 4.0 technologies, including IoT (Internet of Things), AI (Artificial Intelligence), and real-time data analytics, enable predictive maintenance, process optimization, and quality control. Automated systems improve production efficiency, reduce human error, and enable smart manufacturing environments where machines communicate seamlessly with each other and with operators.
Another area of innovation is the integration of hybrid manufacturing techniques. Combining thermoplastic injection molding with other processes, such as additive manufacturing or aluminium die casting, allows for the creation of complex multi-material components with enhanced properties. This hybrid approach expands design possibilities, improves product functionality, and reduces time-to-market for new products.
Conclusion
Thermoplastic injection molding is a versatile and efficient manufacturing process that plays a vital role in producing high-quality plastic components across diverse industries. Its ability to deliver precision, consistency, and cost-effectiveness makes it the preferred choice for applications ranging from automotive and medical devices to consumer electronics and packaging. Understanding the key differences between thermoset vs. thermoplastic injection molding helps manufacturers make informed decisions about material selection and processing methods. As the industry continues to evolve, advancements in materials, automation, and sustainability will drive innovation, improve efficiency, and expand the capabilities of thermoplastic injection molding. By embracing new technologies, optimizing production processes, and prioritizing sustainable practices, manufacturers can leverage the full potential of thermoplastic injection molding to meet the demands of a rapidly changing world. Whether for mass production or specialized applications, this versatile process will continue to shape the future of modern manufacturing.
